This constraint add in the relations buffer the relations of the given type from the targets of relations out of v2 of the given types to v1. More...

#include <linguisticProcessing/core/SyntacticAnalysis/HomoSyntagmaticConstraints.h>

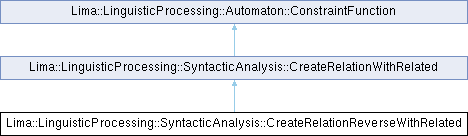

Inheritance diagram for Lima::LinguisticProcessing::SyntacticAnalysis::CreateRelationReverseWithRelated:

Public Member Functions
	CreateRelationReverseWithRelated (MediaId language, const LimaString &complement=LimaString())

	~CreateRelationReverseWithRelated ()

bool	operator() (const LinguisticAnalysisStructure::AnalysisGraph &graph, const LinguisticGraphVertex &v1, const LinguisticGraphVertex &v2, AnalysisContent &analysis) const override
	binary constraint function : the constraint only applies on two vertices in the graph (the graph is also given as a parameter).

Public Member Functions inherited from Lima::LinguisticProcessing::SyntacticAnalysis::CreateRelationWithRelated
	CreateRelationWithRelated (MediaId language, const LimaString &complement=LimaString())

	~CreateRelationWithRelated ()

bool	operator() (const LinguisticAnalysisStructure::AnalysisGraph &graph, const LinguisticGraphVertex &v1, const LinguisticGraphVertex &v2, AnalysisContent &analysis) const override
	binary constraint function : the constraint only applies on two vertices in the graph (the graph is also given as a parameter).

Public Member Functions inherited from Lima::LinguisticProcessing::Automaton::ConstraintFunction
virtual	~ConstraintFunction ()

virtual bool	operator() (const LinguisticAnalysisStructure::AnalysisGraph &, const LinguisticGraphVertex &, AnalysisContent &) const
	unary constraint function : the constraint only applies on one vertices in the graph (the graph is also given as a parameter).

virtual bool	operator() (AnalysisContent &) const
	zero-ary constraint function : applies the function without a vertex indication (used for actions, not constraints -> applied only at end, when a match is found)

virtual bool	operator() (RecognizerMatch &, AnalysisContent &) const
	zero-ary constraint function : applies the function without a vertex indication (used for actions, not constraints -> applied only at end, when a match is found: uses the result of the match

virtual bool	actionNeedsRecognizedExpression ()

const LimaString &	getComplementString ()

unsigned char	getLanguage ()

Additional Inherited Members
Protected Member Functions inherited from Lima::LinguisticProcessing::SyntacticAnalysis::CreateRelationWithRelated
std::vector< LinguisticGraphVertex >	findRelatedVertices (const LinguisticGraphVertex &v, SyntacticData *syntacticData) const

Protected Member Functions inherited from Lima::LinguisticProcessing::Automaton::ConstraintFunction
	ConstraintFunction (MediaId language, const LimaString &complement=LimaString())

Protected Attributes inherited from Lima::LinguisticProcessing::SyntacticAnalysis::CreateRelationWithRelated
std::set< Common::MediaticData::SyntacticRelationId >	m_relationsToFollow

Common::MediaticData::SyntacticRelationId	m_relationToCreate

Protected Attributes inherited from Lima::LinguisticProcessing::Automaton::ConstraintFunction
MediaId	m_language_id

LimaString	m_complement

Detailed Description

This constraint add in the relations buffer the relations of the given type from the targets of relations out of v2 of the given types to v1.

It allows to draw a relation (of type the last element in the complement list) from the target (v1) of the given relations (all except the last in the complement list) to the trigger.

The complement must be of the form: "rel2|…|reln,rel1" with rel1 the type of the relation to create and rel2, …, reln the types of the relations to follow.

Relations added to the buffer will be really added later on succes of the rule by the action constraint AddRelationInGraph

Definition at line 239 of file HomoSyntagmaticConstraints.h.

Constructor & Destructor Documentation

◆ CreateRelationReverseWithRelated()

Lima::LinguisticProcessing::SyntacticAnalysis::CreateRelationReverseWithRelated::CreateRelationReverseWithRelated	(	MediaId	language,
		const LimaString &	complement = `LimaString()`
	)

explicit

Definition at line 705 of file HomoSyntagmaticConstraints.cpp.

◆ ~CreateRelationReverseWithRelated()

Lima::LinguisticProcessing::SyntacticAnalysis::CreateRelationReverseWithRelated::~CreateRelationReverseWithRelated ( )

inline

Definition at line 244 of file HomoSyntagmaticConstraints.h.

Member Function Documentation

◆ operator()()

bool Lima::LinguisticProcessing::SyntacticAnalysis::CreateRelationReverseWithRelated::operator()	(	const LinguisticAnalysisStructure::AnalysisGraph &	,
		const LinguisticGraphVertex &	,
		const LinguisticGraphVertex &	,
		AnalysisContent &
	)		const

overridevirtual

binary constraint function : the constraint only applies on two vertices in the graph (the graph is also given as a parameter).

Function is not pure virtual because it can be unary or binary.

Returns: true if the constraint is verified, false otherwise

Reimplemented from Lima::LinguisticProcessing::Automaton::ConstraintFunction.

Definition at line 711 of file HomoSyntagmaticConstraints.cpp.

The documentation for this class was generated from the following files:

lima_linguisticprocessing/src/linguisticProcessing/core/SyntacticAnalysis/HomoSyntagmaticConstraints.h
lima_linguisticprocessing/src/linguisticProcessing/core/SyntacticAnalysis/HomoSyntagmaticConstraints.cpp
