Lima::Common::FsaAccess::FsaAccess16< graphType > Class Template Reference

#include <common/FsaAccess/FsaAccess16.h>

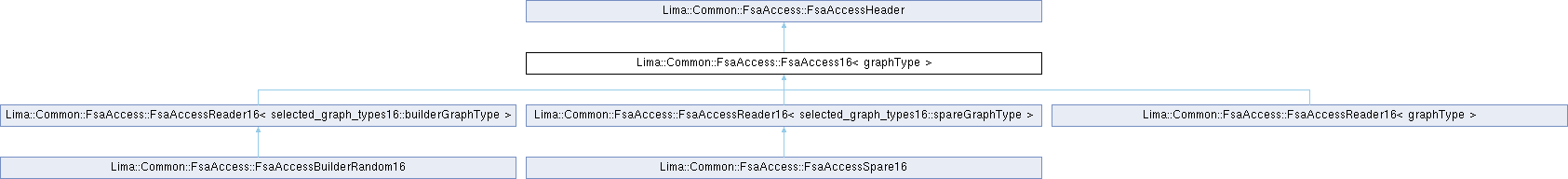

Inheritance diagram for Lima::Common::FsaAccess::FsaAccess16< graphType >:

Public Types
typedef boost::graph_traits< graphType >::edge_descriptor	dicoEdgeType
	type of vertex descriptor type of edge descriptor
typedef boost::graph_traits< graphType >::degree_size_type	dico_degree_size_type
typedef selected_graph_types16::dicoVertexStatusProperty	dicoVertexProperty

Public Member Functions
	FsaAccess16 (bool trie_direction_fwd)
virtual	~FsaAccess16 ()
virtual void	print (std::ostream &os) const
virtual void	printGraph (std::ostream &os) const
void	pack ()
void	checkIntegrity (dicoVertexType from) const
	check integrity of subgraph
Public Member Functions inherited from Lima::Common::FsaAccess::FsaAccessHeader
	FsaAccessHeader (bool trie_direction_fwd)
virtual	~FsaAccessHeader ()
void	read (AbstractFsaAccessIStreamWrapper &iw)
void	write (AbstractFsaAccessOStreamWrapper &ow)
bool	getTrieDirectionForward () const
uint64_t	getNbVertices () const
uint64_t	getNbEdges () const
void	setPackingStatus (uint8_t packingStatus)
void	setNbVertices (uint64_t nbVerts)
void	setNbEdges (uint64_t nbEdges)

Protected Member Functions
std::pair< const dicoVertexType, bool >	findEquivalentInRegister (dicoVertexType tempState)
	Search for equivalent state in register.
bool	equivalent (dicoVertexType referenceState, dicoVertexType candidateState) const
	are both state equivalent? We assume that edges are ordered
virtual FsaAccessIOHandler< graphType > *	getFsaAccessIOHandler () const =0
	For IO Factory of IO Handler: Handler depends on graphType: with mapping or not.
void	writeVertices (AbstractFsaAccessOStreamWrapper &ow, FsaAccessIOHandler< graphType > *iOHandler, dicoVertexType from)
	Parcours recursif du graphe avec creation d'un tableau de conversion ptr -> Id On renomme les noeuds avec des numeros consecutifs, pour eviter d'ecrire et de lire l'indice des noeuds (dans le cas ou le parametre vertexList est vecS) et pour se ramener au cas o le parametre vertexList du template adjacencyList est vecS.
void	readBody (AbstractFsaAccessIStreamWrapper &iw)
void	writeBody (AbstractFsaAccessOStreamWrapper &ow)
PrefixIterator *	getPrefixIterator (const LimaString &word, const uint64_t offset=0) const
	For all navigation Factory of prefixIterator (prefixIt depends on direction: forward/reverse)
void	getPrefix (dicoVertexType &from, PrefixIterator *prefixIt) const
	Recursively goes through the graph from from, following edges labelled by the prefix iterator chars.
virtual void	addSuffix (dicoVertexType from, PrefixIterator *prefixIt)
int32_t	findEdge (const char32_t searchChar, const LimaString &textString, int32_t min, int range, int nb_unit_for_char) const
	find the right offset in the vector of out_edge: search for the character currentChar in the string text which contains label of all out_edges using dichotomy search (assume characters are ordered in textString)
int32_t	findOffsetToInsertBefore (const char32_t searchChar, const LimaString &textString, int32_t min, int range, int nb_unit_per_char) const
	find where to insert currentChar in the string text using dichotomy search (assume characters are ordered in textString)
Protected Member Functions inherited from Lima::Common::FsaAccess::FsaAccessHeader
	FsaAccessHeader (const FsaAccessHeader &h)
FsaAccessHeader &	operator= (const FsaAccessHeader &h)

Protected Attributes
graphType	m_graph
dicoVertexType	m_0degreeOutVertex
dicoVertexType	m_rootVertex
uint64_t	m_size
Protected Attributes inherited from Lima::Common::FsaAccess::FsaAccessHeader
FsaAccessHeaderPrivate *	m_d

Detailed Description

template<typename graphType>
class Lima::Common::FsaAccess::FsaAccess16< graphType >

Definition at line 180 of file FsaAccess16.h.

Member Typedef Documentation

dico_degree_size_type

template<typename graphType >

typedef boost::graph_traits<graphType>::degree_size_type Lima::Common::FsaAccess::FsaAccess16< graphType >::dico_degree_size_type

Definition at line 188 of file FsaAccess16.h.

dicoEdgeType

template<typename graphType >

typedef boost::graph_traits<graphType>::edge_descriptor Lima::Common::FsaAccess::FsaAccess16< graphType >::dicoEdgeType

type of vertex descriptor type of edge descriptor

Definition at line 186 of file FsaAccess16.h.

dicoVertexProperty

template<typename graphType >

typedef selected_graph_types16::dicoVertexStatusProperty Lima::Common::FsaAccess::FsaAccess16< graphType >::dicoVertexProperty

Definition at line 190 of file FsaAccess16.h.

Constructor & Destructor Documentation

FsaAccess16()

template<typename graphType >

Lima::Common::FsaAccess::FsaAccess16< graphType >::FsaAccess16

(

bool

trie_direction_fwd

)

~FsaAccess16()

template<typename graphType >

virtual Lima::Common::FsaAccess::FsaAccess16< graphType >::~FsaAccess16 ( )

inlinevirtual

Definition at line 193 of file FsaAccess16.h.

Member Function Documentation

addSuffix()

template<typename graphType >

virtual void Lima::Common::FsaAccess::FsaAccess16< graphType >::addSuffix ( dicoVertexType  from, PrefixIterator *  prefixIt  )

protectedvirtual

checkIntegrity()

template<typename graphType >

void Lima::Common::FsaAccess::FsaAccess16< graphType >::checkIntegrity

(

dicoVertexType

from

)

const

check integrity of subgraph

equivalent()

template<typename graphType >

bool Lima::Common::FsaAccess::FsaAccess16< graphType >::equivalent ( dicoVertexType  referenceState, dicoVertexType  candidateState  ) const

protected

are both state equivalent? We assume that edges are ordered

findEdge()

template<typename graphType >

int32_t Lima::Common::FsaAccess::FsaAccess16< graphType >::findEdge ( const char32_t  searchChar, const LimaString &  textString, int32_t  min, int  range, int  nb_unit_for_char  ) const

protected

find the right offset in the vector of out_edge: search for the character currentChar in the string text which contains label of all out_edges using dichotomy search (assume characters are ordered in textString)

findEquivalentInRegister()

template<typename graphType >

std::pair< const dicoVertexType, bool > Lima::Common::FsaAccess::FsaAccess16< graphType >::findEquivalentInRegister ( dicoVertexType  tempState )

protected

Search for equivalent state in register.

v1 and v2 are Equivalent means:

• v1 and v2 are both final or not final
• v1 and V2 have same number of out edges
• label on out edges are the same and lead to same target state We use in this function the capacity of bidirectionnalS adjacency_list to go from tempstate one step through out-edges and then one step through in-edges to find vertex with same target vertex. The final state without out edges is compared first because it is a special case and is often the right state to merge with tempstate (for every word which are not prefixes of another word.

findOffsetToInsertBefore()

template<typename graphType >

int32_t Lima::Common::FsaAccess::FsaAccess16< graphType >::findOffsetToInsertBefore ( const char32_t  searchChar, const LimaString &  textString, int32_t  min, int  range, int  nb_unit_per_char  ) const

protected

find where to insert currentChar in the string text using dichotomy search (assume characters are ordered in textString)

getFsaAccessIOHandler()

template<typename graphType >

virtual FsaAccessIOHandler< graphType > * Lima::Common::FsaAccess::FsaAccess16< graphType >::getFsaAccessIOHandler ( ) const

protectedpure virtual

For IO Factory of IO Handler: Handler depends on graphType: with mapping or not.

Implemented in Lima::Common::FsaAccess::FsaAccessBuilder16, Lima::Common::FsaAccess::FsaAccessBuilderRandom16, and Lima::Common::FsaAccess::FsaAccessSpare16.

getPrefix()

template<typename graphType >

void Lima::Common::FsaAccess::FsaAccess16< graphType >::getPrefix ( dicoVertexType &  from, PrefixIterator *  prefixIt  ) const

protected

Recursively goes through the graph from from, following edges labelled by the prefix iterator chars.

When it returns, from is the last vertex reachable using the initial prefix content and prefixIt gives access to the remaining of the word.

getPrefixIterator()

template<typename graphType >

PrefixIterator * Lima::Common::FsaAccess::FsaAccess16< graphType >::getPrefixIterator ( const LimaString &  word, const uint64_t  offset = 0  ) const

protected

For all navigation Factory of prefixIterator (prefixIt depends on direction: forward/reverse)

pack()

template<typename graphType >

void Lima::Common::FsaAccess::FsaAccess16< graphType >::pack

(

)

print()

template<typename graphType >

virtual void Lima::Common::FsaAccess::FsaAccess16< graphType >::print ( std::ostream &  os ) const

virtual

printGraph()

template<typename graphType >

virtual void Lima::Common::FsaAccess::FsaAccess16< graphType >::printGraph ( std::ostream &  os ) const

virtual

readBody()

template<typename graphType >

void Lima::Common::FsaAccess::FsaAccess16< graphType >::readBody ( AbstractFsaAccessIStreamWrapper &  iw )

protected

writeBody()

template<typename graphType >

void Lima::Common::FsaAccess::FsaAccess16< graphType >::writeBody ( AbstractFsaAccessOStreamWrapper &  ow )

protected

writeVertices()

template<typename graphType >

void Lima::Common::FsaAccess::FsaAccess16< graphType >::writeVertices ( AbstractFsaAccessOStreamWrapper &  ow, FsaAccessIOHandler< graphType > *  iOHandler, dicoVertexType  from  )

protected

Parcours recursif du graphe avec creation d'un tableau de conversion ptr -> Id On renomme les noeuds avec des numeros consecutifs, pour eviter d'ecrire et de lire l'indice des noeuds (dans le cas ou le parametre vertexList est vecS) et pour se ramener au cas o le parametre vertexList du template adjacencyList est vecS.

Member Data Documentation

m_0degreeOutVertex

template<typename graphType >

dicoVertexType Lima::Common::FsaAccess::FsaAccess16< graphType >::m_0degreeOutVertex

protected

Definition at line 254 of file FsaAccess16.h.

m_graph

template<typename graphType >

graphType Lima::Common::FsaAccess::FsaAccess16< graphType >::m_graph

protected

Definition at line 253 of file FsaAccess16.h.

m_rootVertex

template<typename graphType >

dicoVertexType Lima::Common::FsaAccess::FsaAccess16< graphType >::m_rootVertex

protected

Definition at line 255 of file FsaAccess16.h.

m_size

template<typename graphType >

uint64_t Lima::Common::FsaAccess::FsaAccess16< graphType >::m_size

protected

Definition at line 257 of file FsaAccess16.h.

---

The documentation for this class was generated from the following file:

• lima_common/src/common/FsaAccess/FsaAccess16.h
